Normal Map Range and Intensity Guide: Vector Math and Shader Setup

Among all the texture maps utilized in modern 3D computer graphics, the tangent-space normal map is the most mathematically unique. Unlike an albedo texture or roughness map where pixels represent simple scalar luminance or color pigments, pixels in a normal map represent three-dimensional directional vectors. Understanding the mathematical concept of normal map range—specifically how floating-point vector directions in the continuous range of [-1.0, 1.0] are compressed into standard 8-bit integer RGB color channels [0, 255]—is essential for any 3D artist, technical animator, or shader developer looking to avoid lighting artifacts, blown-out specular highlights, and inverted surface seams.

Whether you are authoring custom materials in Substance Designer, tweaking normal intensity sliders in Unity or Unreal Engine 5, or coding custom HLSL/GLSL pixel shaders, mastering the math behind normal ranges ensures your 3D models react realistically to dynamic lighting. Below is the comprehensive technical breakdown.

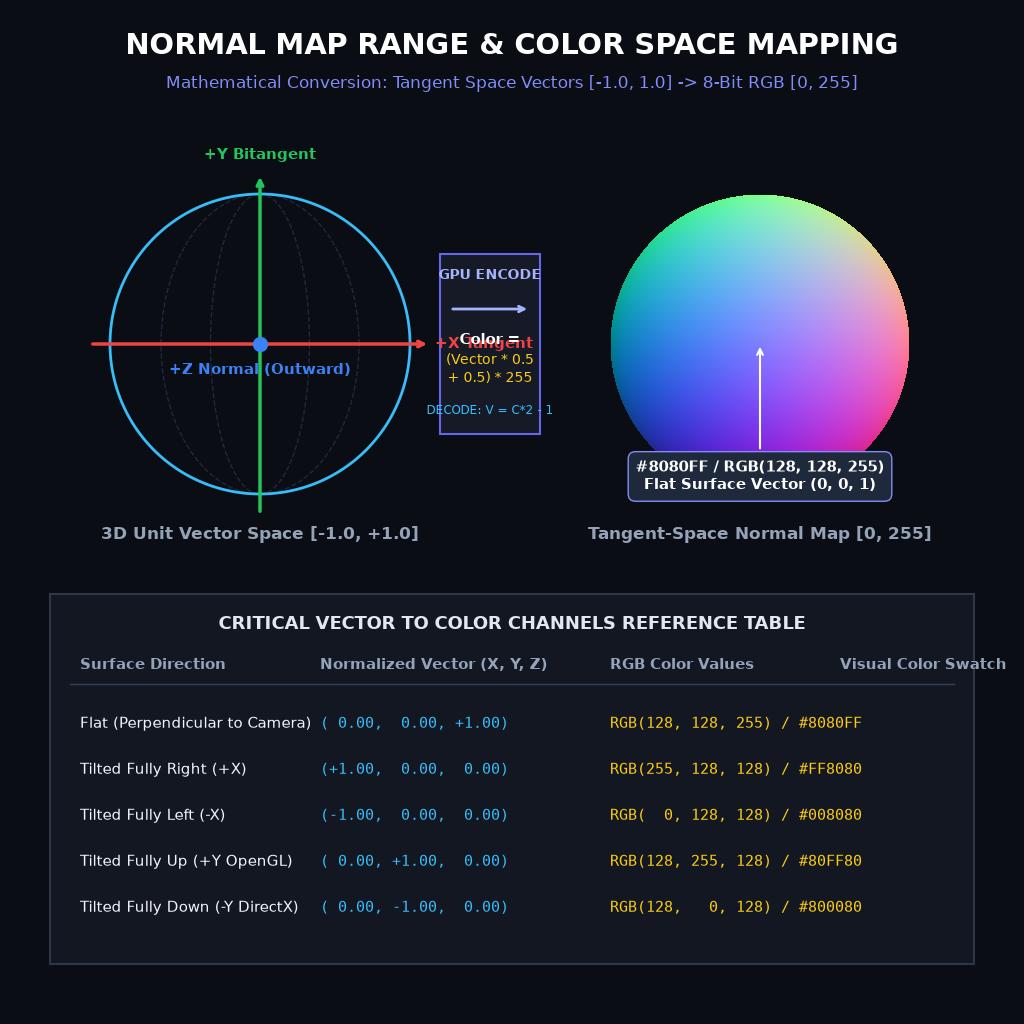

Mathematical mapping of tangent-space unit normal vectors [-1.0, 1.0] into standard 8-bit RGB [0, 255] texture coordinates.

---

The Vector Math Behind the Normal Map Range

A surface normal is a unit vector perpendicular to the surface of a 3D polygon. In tangent space, this vector has three components: (X, Y, Z):

• X Tangent: Governs horizontal tilt (Left to Right), spanning from -1.0 to +1.0.
• Y Bitangent: Governs vertical tilt (Down to Up), spanning from -1.0 to +1.0.
• Z Normal: Points directly outward from the surface toward the camera, spanning from 0.0 to +1.0.

The Compression Equation: From Vectors [-1, 1] to RGB [0, 255]

Standard 8-bit digital image formats (like PNG, JPG, or TGA) cannot store negative numbers. To save directional vectors into an image file, texture baking software maps the range of [-1.0, 1.0] onto normalized texture space [0.0, 1.0], and then multiplies by 255:

[Encoding Vector into 8-Bit Pixel Color]
Color.R = (Vector.X * 0.5 + 0.5) * 255
Color.G = (Vector.Y * 0.5 + 0.5) * 255
Color.B = (Vector.Z * 0.5 + 0.5) * 255

The Unpacking Equation in the GPU Pixel Shader

When your game engine renders a frame, the GPU pixel shader reverses this calculation in hardware:

// Unpacking Normal Vector in HLSL / GLSL
vec3 normalVector = texture2D(normalMap, uv).rgb * 2.0 - 1.0;
normalVector = normalize(normalVector); // Ensure unit length = 1.0

This explains why flat, un-tilted areas of a normal map appear characteristic periwinkle blue (RGB 128, 128, 255):

• X = 0.0 -> 0.0 * 0.5 + 0.5 = 0.5 * 255 = 128 (Red)
• Y = 0.0 -> 0.0 * 0.5 + 0.5 = 0.5 * 255 = 128 (Green)
• Z = 1.0 -> 1.0 * 0.5 + 0.5 = 1.0 * 255 = 255 (Blue)

---

Normal Map Intensity: How to Scale Strength Correctly

In 3D engines, artists frequently want to amplify or soften surface bumpiness. However, scaling a normal map incorrectly breaks vector normalization:

❌ WRONG METHOD: Simply multiplying the entire RGB color by a multiplier.
-> Multiplying R, G, and B blows out the Z vector, causing pitch-black shading artifacts!

✅ CORRECT METHOD: Multiply only the X and Y tangent components, then normalize:
vec3 scaledNormal = vec3(normal.xy * intensity, normal.z);
scaledNormal = normalize(scaledNormal);

Normal Intensity Value	Visual Effect	Geometric Slope Response	Recommended Use Case
0.0	Completely flat surface	Z vector = (0, 0, 1)	Mirrored glass, polished chrome
0.5 to 0.8	Subtle micro-relief	Gentle deflection angles	Fine silk, smooth plastic, skin pores
1.0 (Default)	Physically accurate 1:1 bake	Tangent vector matches source sculpt	Standard props, wood, masonry
1.5 to 2.5	Exaggerated dramatic bump	Steep slopes, deep crevices	Weathered rock, stylized game art
> 3.0 (Over-driven)	Shading distortion	Extreme shearing, dark rim glitches	Avoid; use geometric displacement instead

---

Generate Normal Maps and Custom Materials Online

Synthesize calibrated normal maps with verified vector ranges directly in your web browser.

If you need to generate production-ready normal maps and PBR textures for this workflow, start with our Free Online Normal Map Generator — Try Rough Granite Cliff.

You can also generate tileable surface textures for modular environment meshes using our Seamless Texture Generator — Try Granite Rock Texture.

---

Troubleshooting Normal Range Shading Errors

[Normal Range Diagnostic Table]
Symptom: Seams along UV borders are bright white  ──> Cause: Tangent space mismatch (MikkTSpace vs custom)
Symptom: Grazing angles turn solid black          ──> Cause: Unnormalized vectors; shader forgot to call normalize()
Symptom: Cavities look like raised blisters      ──> Cause: Green channel inverted; switch between OpenGL and DirectX
Symptom: Shading looks blocky or stepped         ──> Cause: Low-precision 8-bit texture; switch to BC5 or 16-bit format

---
